What happens if hydraulic pressure is too high?
Emily Phillips What is considered high hydraulic pressure?
The term “high pressure” is usually used to refer to the pressure range above 450 bar. High pressure is primarily required in situations where heavy weights need to be moved or powerful movements need to be carried out with precision in tight spaces.
What causes high hydraulic pressure?
This could be anything from a cylinder that is leaking high-pressure fluid past its piston seal, to an incorrectly adjusted relief valve. Identify and change-out any heat-generating components. Air generates heat when compressed. This means that aeration increases the heat load on the hydraulic system.
What are three 3 common problems associated with hydraulic systems?
Common Causes of Hydraulic Failure
- Air and Water Contamination. Air and water contamination are the leading causes of hydraulic failure, accounting for 80 to 90% of hydraulic failures. ...
- Temperature Problems. ...
- Fluid Levels and Quality. ...
- Human Error.
How often should hydraulic fluid be changed?
Typically, 4-5 years is the time when you should change the hydraulic oil in the vehicle, however, we cannot define a particular time duration for the life of hydraulic oil used. Mostly, the type of vehicle, climate, driving conditions, maintenance, and other factors influence the time.

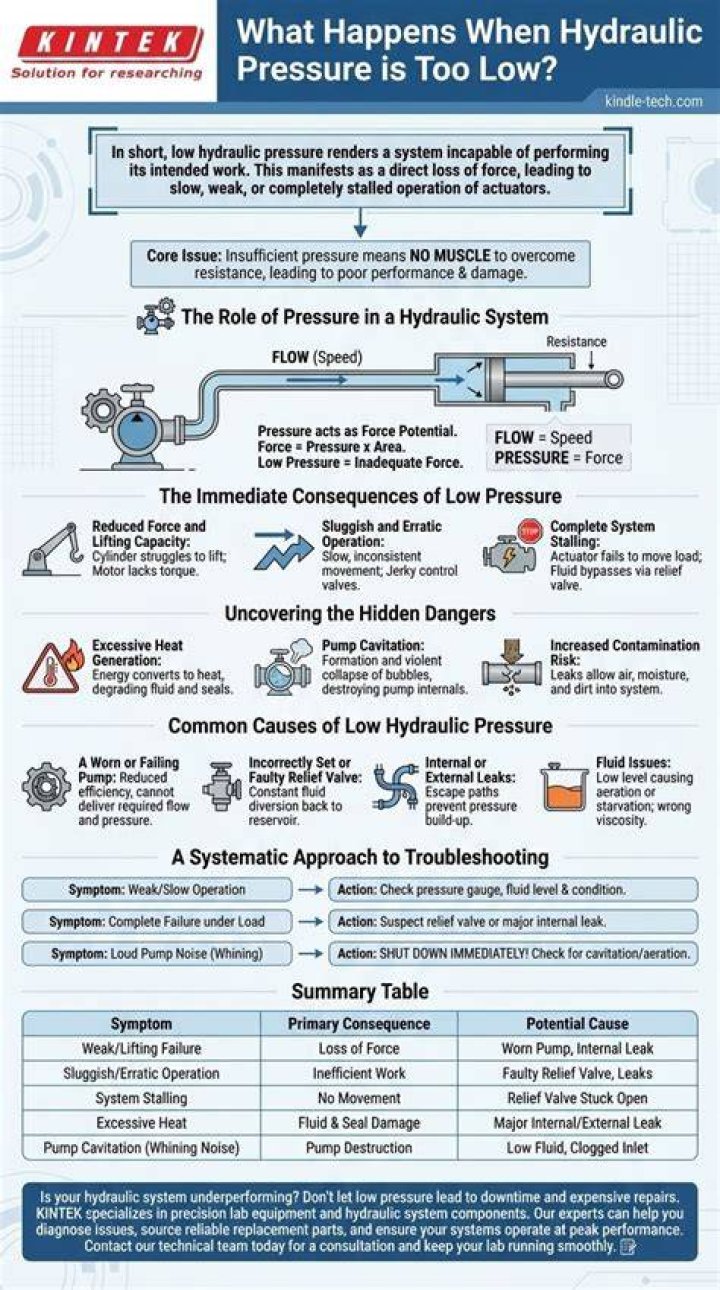

Diagnosing Low Pressure in a Hydraulic System
How do you know if a hydraulic pump is bad?
Don't ignore these signs of a failing hydraulic pump.
- Your Hydraulic Pump Makes Noises. Hydraulic pumps make noise as they operate. ...
- Your Hydraulic Pump Leaks. Any leaking of hydraulic fluids should give you some concern. ...
- Your Hydraulic Pump Gets Too Hot. ...
- Your Hydraulic Pump Slows Down.
What is the pressure of hydraulic?
The accepted international standard for maximum working pressure in the high pressure hydraulic tools industry is 700 Bar (10,000 PSI) and the majority of the products offered by Hi-Force are in line with this standard.
What determines pressure in a hydraulic system?
Two factors determine the hydraulic system pressure: the surface area of the piston and the size of the force produced by the machine through that piston.
What are the major problems of hydraulic system?
A: Noise, elevated temperatures and slow or erratic operation are all signs of problems with your hydraulics system. The most common causes of poor hydraulic performance are particulate contamination, water contamination, clogged filters, high fluid temperature and incorrect hydraulic fluids.
What causes hydraulics to surge?
Hydraulic surges are created when the velocity of a fluid suddenly changes and becomes unsteady or transient. Fluctuations in the fluid's velocity are generated by restrictions like a pump starting/stopping, a valve opening/closing, or a reduction in line size.
How do you know if you have air in your hydraulic system?
When air is present in a hydraulic system, the desired instant system reaction is slowed and results in a slower actuator response or a “spongy feel.” This is due to the compressible nature of the trapped air. The air contained in a system is alternately compressed and decompressed as the actuator is cycled.
Why should a hydraulic system always be started at low pressure?
The compensator must always be set at a lower pressure than your system relief valve. If the system relief is lower or equal to the compensator setting, you will have constant flow over the main relief, which will then produce a ton of heat until the system fails.
What does full flow mean in hydraulics?
Introduction to full flow hydraulic filter
Full flow hydraulic filter usually has capability to provide more positive filtering action and it will offer greater resistance to the flow of hydraulic fluid, especially when hydraulic fluid will be dirty.
How can you make hydraulics stronger?
One Simple Way to Improve Hydraulic Machine Performance
- Use components with higher native efficiency: a piston pump instead of a gear pump, for example.
- Minimize the use of energy-loss devices, such as flow controls, pressure reducing valves and even proportional valves.
Can you have flow without pressure?
Flow rates are often referred to in gallons per minute or GPM. There are some smaller pumps that rate flow at gallons per hour or even gallons per day, outputting extremely small amounts of fluid over a given time. Pump pressure, however, is a measure of resistance to flow. Without flow, there is no pressure.
Does increasing flow increase pressure?
Bernoulli's Principle states that as the speed of a moving fluid increases, the pressure within the fluid decreases. The Bernoulli's Principle explains the behavior of an ideal fluid passing through a pipe or enclosed passageway such a pump.
What is hydraulic pressure in simple words?
[ hī′drə-stăt′ĭk ] The pressure exerted by a fluid at equilibrium at a given point within the fluid, due to the force of gravity. Hydrostatic pressure increases in proportion to depth measured from the surface because of the increasing weight of fluid exerting downward force from above.
How long do hydraulic pumps last?
A pump operating at 70% or less of a duty cycle that spins at 1200 rpm using clean oil is likely to last over 20,000 hours. However, under a 90% load with 1800 rpm and a special purpose oil, that lifespan is reduced to around 10,000 hours.
How do you remove air from a hydraulic system?
For dissolved air, you can remove it by raising the temperature of the fluid until the air is released. This should only be done if absolutely necessary as hydraulic oil will normally tend to be at least 10% dissolved air.
What causes hydraulics to overheat?
Why do Hydraulic Systems Overheat? If the total input power lost to heat is greater than the heat dissipated, the hydraulic system will eventually overheat. Installed cooling capacity typically ranges between 25 and 40 percent of input power, depending on the type of hydraulic system.
Is it OK to mix hydraulic fluid?
CAN I MIX HYDRAULIC FLUIDS? As far as possible, it is always best to avoid mixing different hydraulic fluids. This is because the technical properties could be spoiled by chemical reactions between different additives.
Can you use engine oil for hydraulic oil?
It is therefore very common practice for multigrade engine oil to be used as hydraulic fluid in skid-steer loaders. Modern multigrade engine oils also use detergent additives to help 'clean' the engines that they are designed for. The general consensus is that this is also a benefit for most hydraulic systems.
